Chain spinning head

Chain spinning head

For coupling
Length
Version
A chain spinning head serves as an attachment to better clear a clog. Available in different versions.
View full details
Available items
Article no. For coupling Length Version For drainage Box Weight (kg) EAN

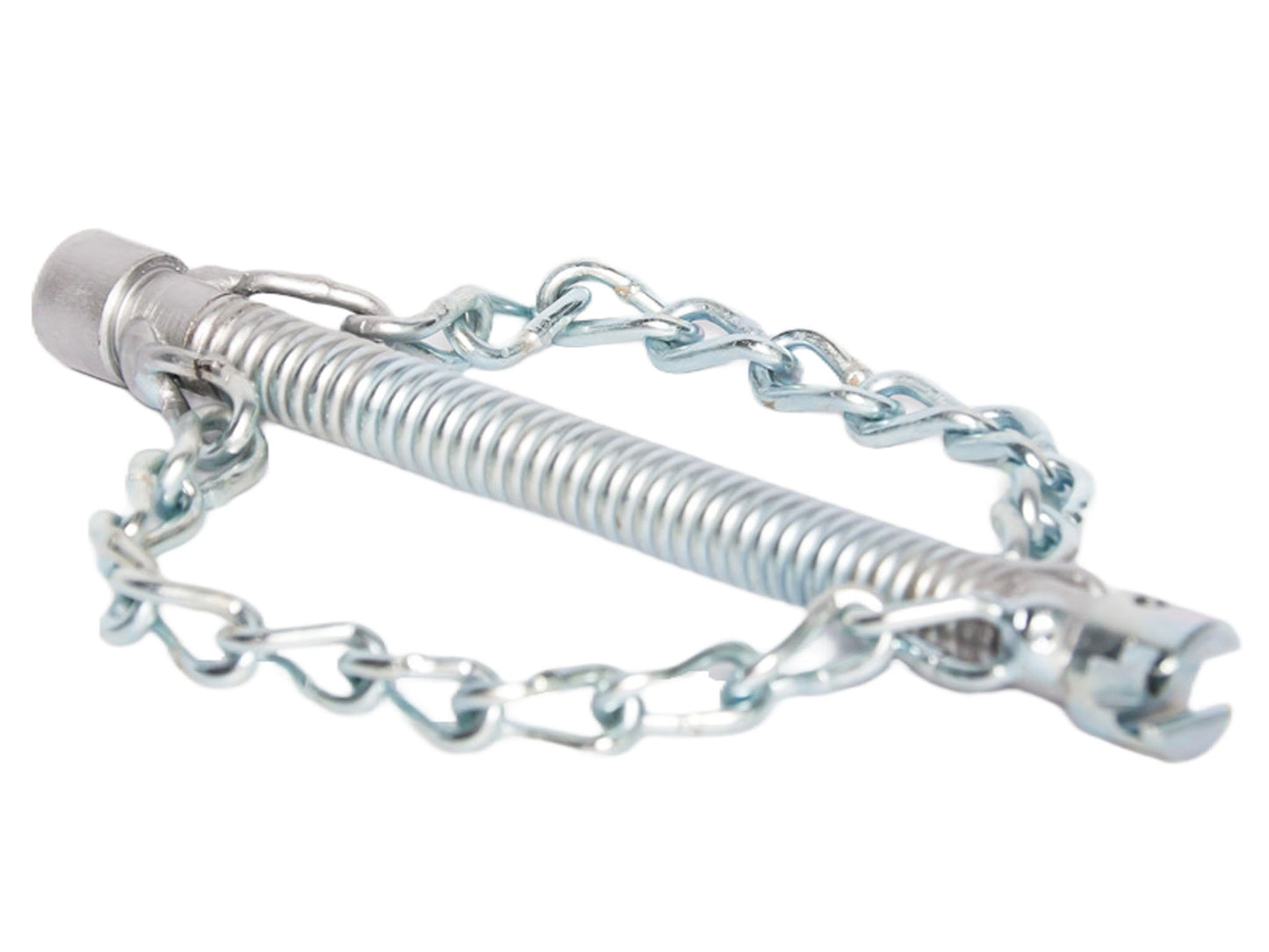

97464 16mm 30mm without ring with 2 chains 50 - 125 mm 1 0.180 8715089974648
97466 16mm 40mm without ring with 3 chains 50 - 125 mm 1 0.215 8715089974662

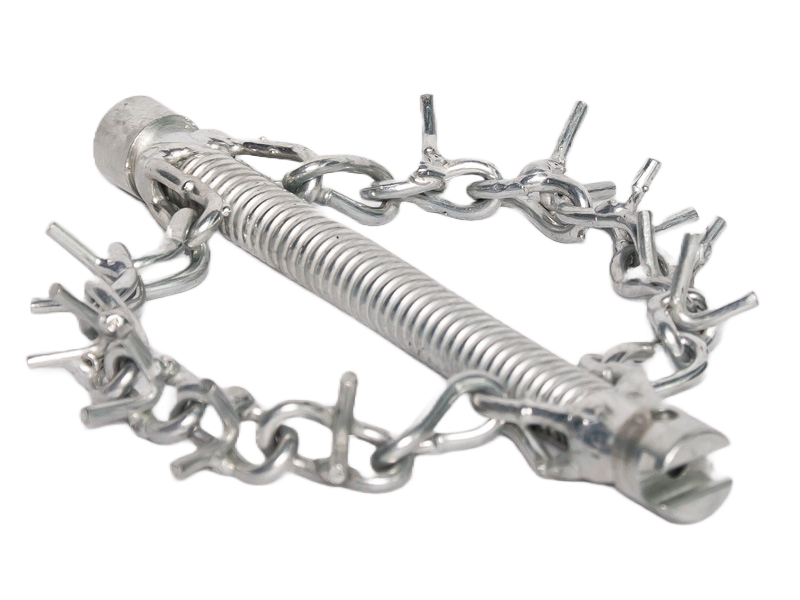

97468 16mm 30mm without ring with 2 chains with cams 50 - 125 mm 1 0.190 8715089974686
97470 16mm 40mm without ring with 3 chains with cams 50 - 125 mm 1 0.245 8715089974709

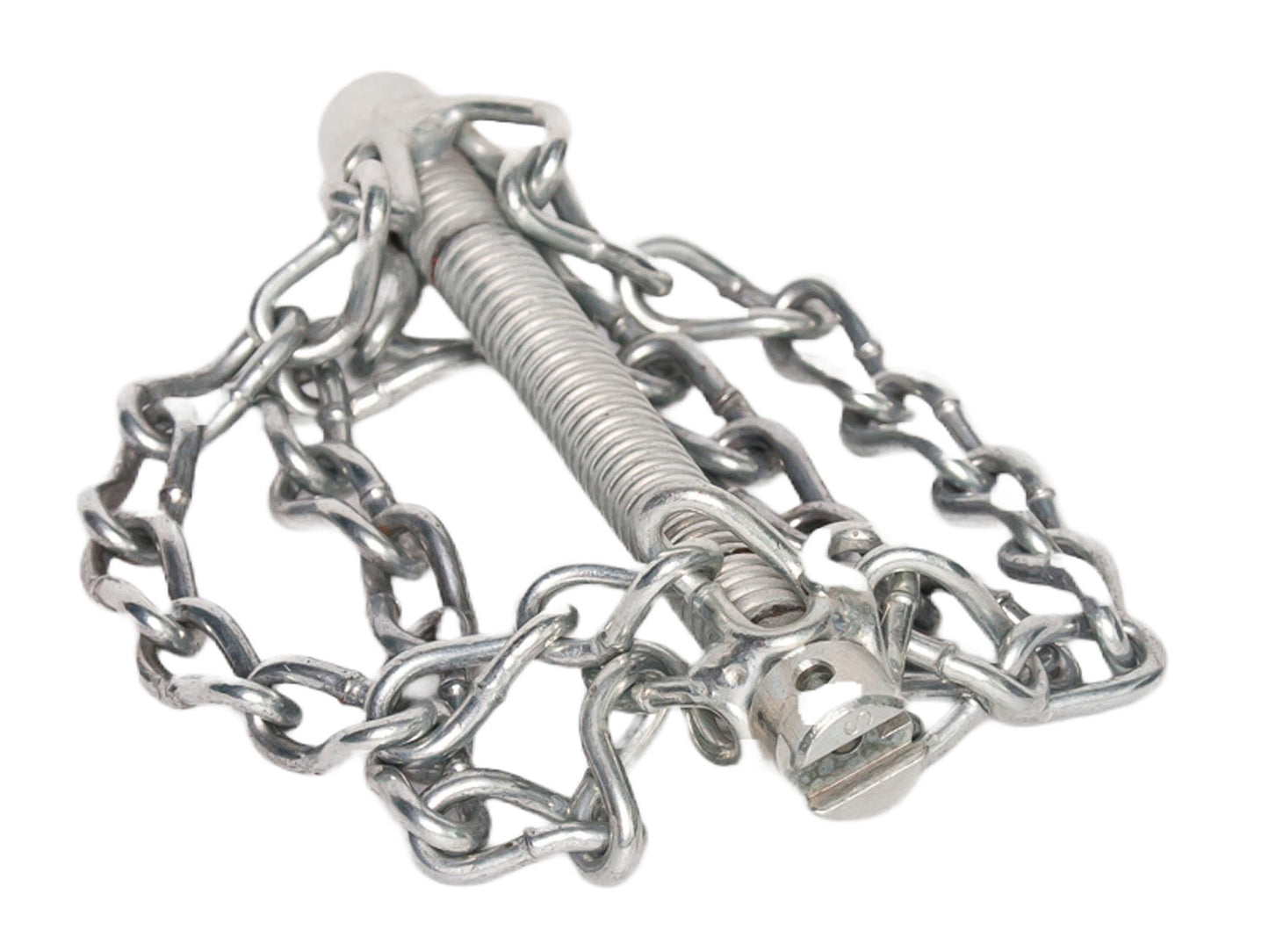

97469 16mm 50mm without ring with 4 chains 70 - 130 mm 1 0.250 8715089974693
97471 16mm 50mm without ring with 4 chains with cams 70 - 130 mm 1 0.250 8715089974716

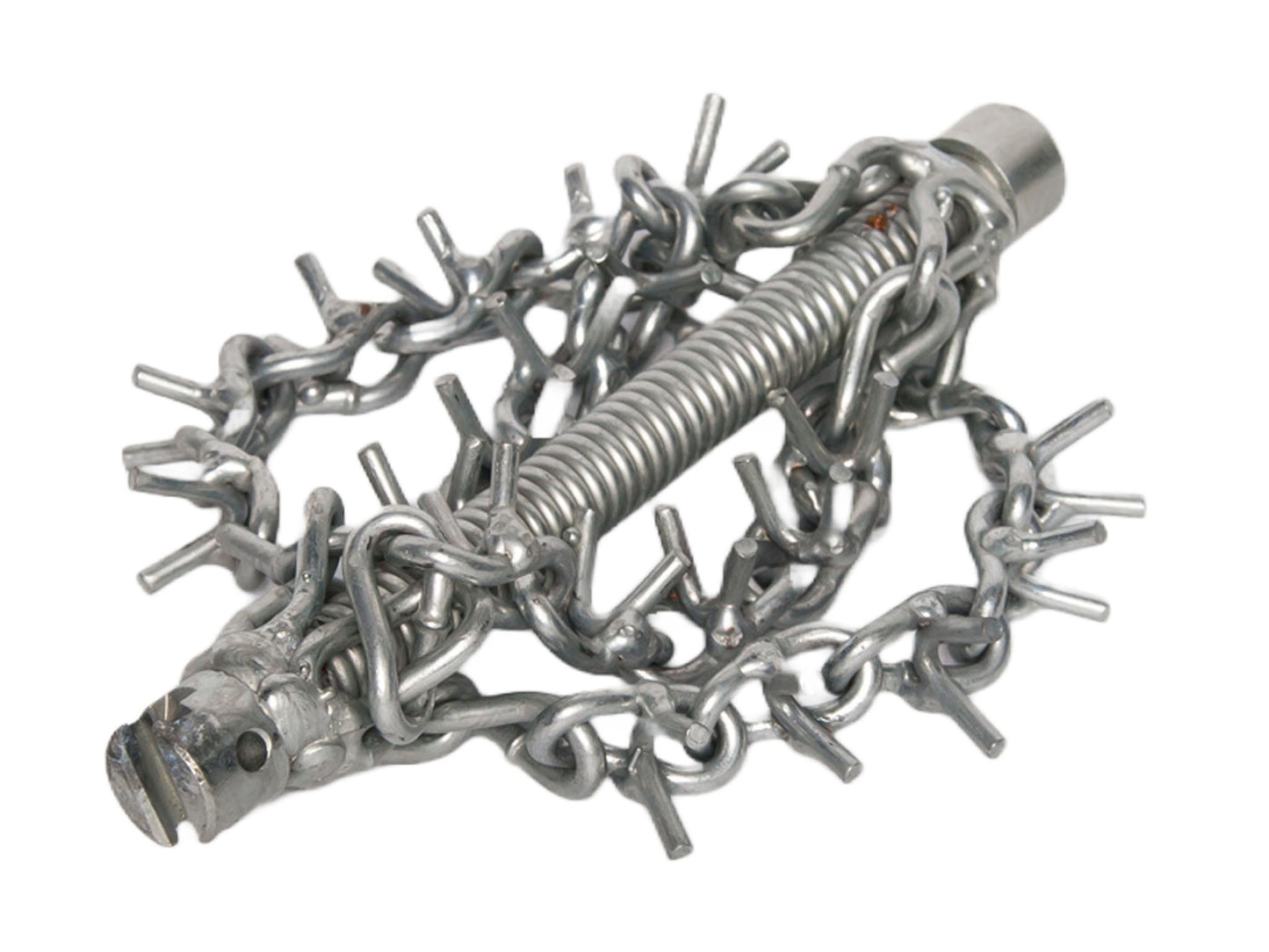

97472 22mm 50mm without ring with 2 chains 70 - 130 mm 1 0.595 8715089974723
97474 22mm 60mm without ring with 3 chains 75 - 130 mm 1 0.700 8715089974747
97476 22mm 50mm without ring with 2 chains with cams 70 - 130 mm 1 0.630 8715089974761
97478 22mm 60mm without ring with 3 chains with cams 75 -130 mm 1 0.750 8715089974785
97477 22mm 60mm without ring with 4 chains 75 - 130 mm 1 0.900 8715089974778
97479 22mm 60mm without ring with 4 chains with cams 75 - 130 mm 1 1.100 8715089974792
97490 32mm 70mm without ring with 2 chains 90 - 150 mm 1 0.900 8715089974907
97492 32mm 70mm without ring with 2 chains with cams 90 - 150 mm 1 0.950 8715089974921
97494 32mm 70mm without ring with 4 chains 90 - 150 mm 1 1.300 8715089974945
97496 32mm 70mm without ring with 4 chains with cams 90 - 150 mm 1 1.350 8715089974969
